Adputer Station implemented several innovative technologies for the applications of digital broadcasting, digital signage center, and VJ. It includes Source, Media Server, Video Mixer, Recorder/Transcoder, Managerment.

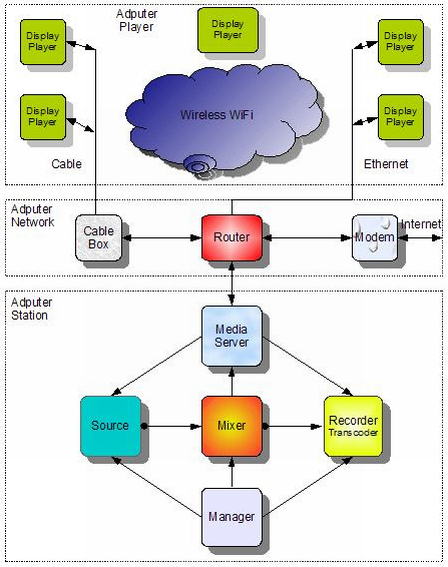

Architecture Diagram of Adputer Solution for Digital Signage.

1. Management

There are System, Storage, Network, Security, Content, Event, and Program Management sub- systems. System Management manages hardware and system. Storage Management manages storage and backup. Network Management manages cable, ethernet, wireless, or 3G/4G network. Security Management keeps player, station, network, and content in security. Content Management manages media and advertising contents. Event Management schedules events. Program Management mangages programs.

2. Broadcasting: Picture-in-picture (PiP)

In analog TV industry, Picture in Picture (PiP) allows one TV channel to be displayed on full screen while another TV channel to be displayed in overlay. Picture-in-picture usually needs two tuners to receive two TV signals. The primary tuner may receive cable TV program while secondary tuner may receive DVD player or PC display. The Blu-ray Disc for HD movies included Picture-in-picture so you can watch video comments and a movie. Here is an interesting blog and comments: Okay, who uses Picture in Picture? by Mandi Bierly.

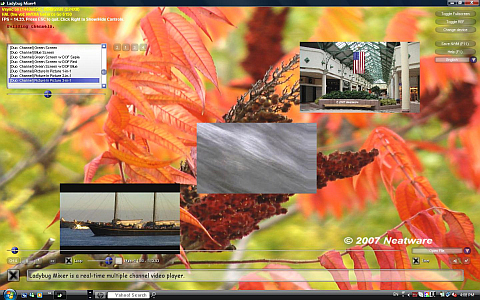

PIP 3-in-1. Three parallel videos are over the main window.

Since Adputer Station can run n-channel video simultaneously, it can deploy Picture-in-picture (PiP) in multiple mode. For example, Adputer Station with 4-channel support can implement PiP in 1-in-1, 2-in-1, and 3-in-1. That allows you to watch 3 subtitle channels in one full screen movie. In Olympic Game, you can watch swimming while preview basketball and switch them if you want to change your focus.

3. Screen Wall

Adputer Station can do real-time HD video mixing and can display a large screen with multiple small screens. You can use a 4-port graphics card with 4 GPUs and connect it to 4 projectors in 100 inches then you display a video on a super large scrren in 2x2 100 inches.





4. Adputer Station Specification



Processor + Chipset	Intel Core i5	X86 2.80G 45nm 4Cores/4Threads 64-bit
Graphics	AMD Radeon HD 5xxx	DirectX 11 40nm, 2xUVD2, 1GB GDDR5
Memory	2xDDR3	4GB, 1156MHz
Operating System	Windows 7	64-bits
